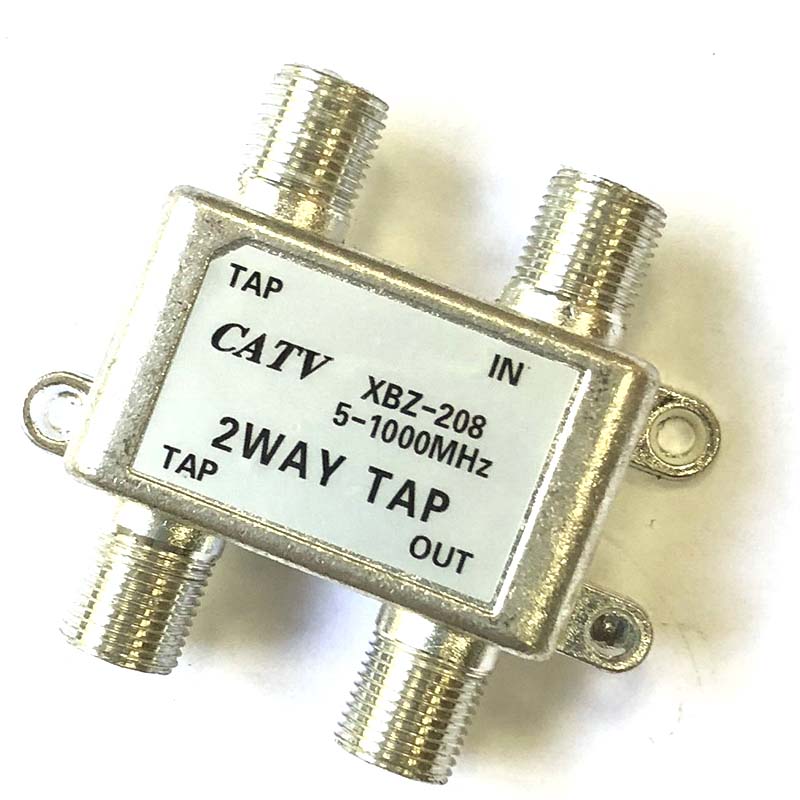

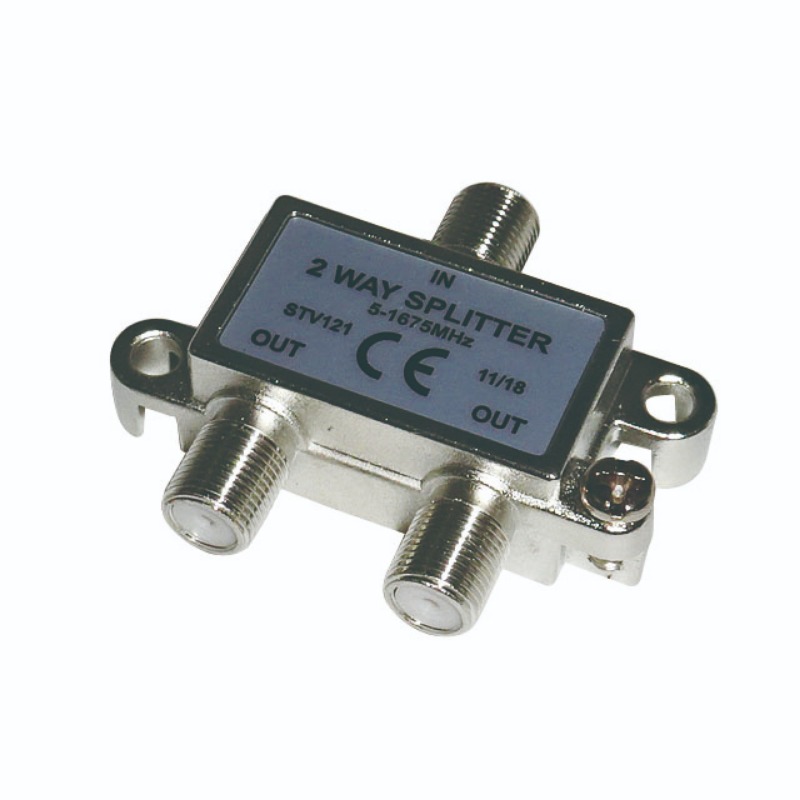

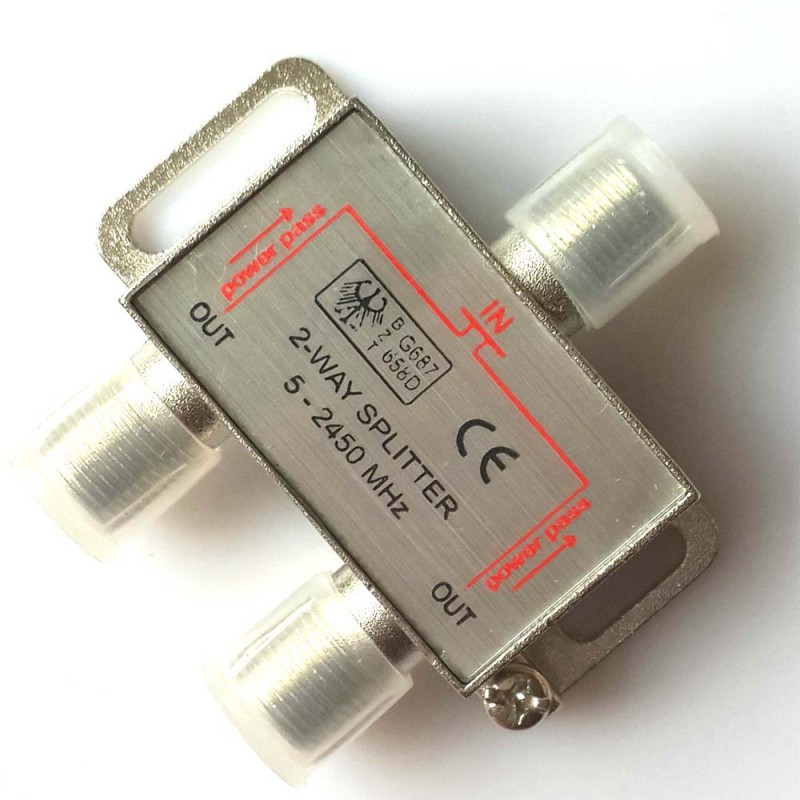

2 ways TV Splitter

￥0.00

  • Product Code:
  • Availability: In Stock
- +

★Description

4 Way CATV tap, 06dB,08dB,10dB,12 dB,14dB,16dB,18dB,20dB,22dB,24dB,28dB 5-1000MHz, RFI>110dB, all ports DC blocked.

★Features

⊙5~1000MHz Bandwidth,120dB EMI.
⊙Low insertion losss, High return loss and isolation
⊙Zinealloy die-cast housing, tin or nickel plated.
⊙Solder back housings, machine threaded, flat F-ports, 75Ohm.
⊙Capacitor at all ports provides effective DC voltage blocking.
⊙Compliant with SCTE splitter guidelines.
⊙CE&ROHS Certified.



★Electrical Performance

3 WAY TAP
ITEM
PARAMETER
Tap Loss
(dB)
Value / Inaccuracy
10
12
14
16
18
20
22
24
5-10MHz / ±0.5
9.5
11.5
13.5
15.5
17.5
19.5
22
23.5
11-65MHz / ±0.5
10.2
11.8
14.2
15.9
17.9
20.5
22
24
50-750MHz / ±1.0
10.5
12.2
14.5
16.4
18
20.5
22.4
24.4
750-1000MHz / ±1.0
10.5
12.5
14.5
16.5
18.5
20.5
22.4
24.5
Insertion Loss(dB)
 5-10MHz
≤3.7
≤3.7
≤2.6
≤1.7
≤1.3
≤1.0
≤1.0
≤0.9
11-65MHz
≤3.6
≤3.6
≤2.5
≤1.6
≤1.3
≤1.0
≤0.9
≤0.7
50-750MHz
≤3.9
≤3.9
≤2.7
≤1.7
≤1.6
≤1.2
≤1.2
≤0.8
750-1000MHz
≤4.0
≤4.0
≤3.1
≤2.5
≤1.8
≤1.6
≤1.2
≤1.0
Reverse
Isolation
(dB)
 5-10MHz
≥26
≥28
≥28
≥28
≥30
≥32
≥34
≥36
 11-65MHz
≥28
≥30
≥30
≥30
≥32
≥32
≥32
≥32
50-750MHz
≥26
≥26
≥28
≥30
≥30
≥30
≥30
